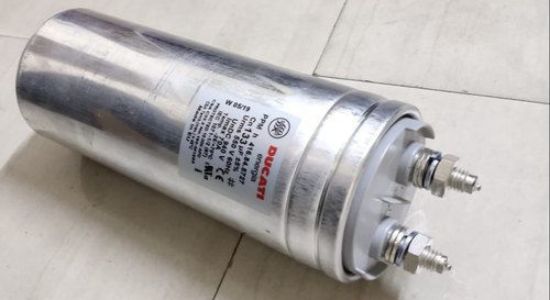

DUCATI CAPACITOR 133MFD/550V

CHARACTERISTICSRated Capacitance 133 μFCapacitance Tolerance ±5%Rated AC Voltage (Urms) 550 VRated DC Voltage (Un) 940 VMaximum RMS Current (Imax) 70 ASelf-inductance < 210 nHEquivalent series resistance (RESR) < 2 mΩTypical tan d (10E-4) 6,5 (Measure @ 50Hz)Thermal resistance natural cooling(RTHN)1.0 °C/WInsulation res. (Ir) terminals to case >2.0 GΩ (@ 500Vdc)Filler material Polyurethane Resin, No PCBDielectric PPM FilmOver pressure safety device, self healing technology.Aluminium case, plastic cover – Indoor mounting, M12 fixing stud.Weight ≤ 1150 gMAXIMUM RATINGSOver voltage 1.1 Un 8hours/dayNon-recurrent surge voltage (Us) 1800 VMaximum peak current (IPK) 4.0 kAMaximum surge current (Is) 7.2 kAMaximum Fault current - UL810Max .Fixing Torque for terminalsMax .Fixing Torque for M12 stud10.000610ANmNmTEST DATAAC Test voltage terminal to terminal 2,15xUn x 2s VacAC test voltage terminal to case 3.5kVx 10 s Vac 50HzCLIMATIC CATEGORYMin.operating temperature (θ MIN) -25 °CMax. operating temperature (θ MAX) +70 °CStorage temperature -40 +85 °CAltitude maximum 2000m a.s.l.Failure quota 300/10E9Expected life (Ln) 100.000 h @ 550Vac / 50HzHumidity category In accord. with DIN 40040Insulating In accord. with UL 810/ UL 840Vibration resistance In accord. with EIA STAND.RS-186-7E
