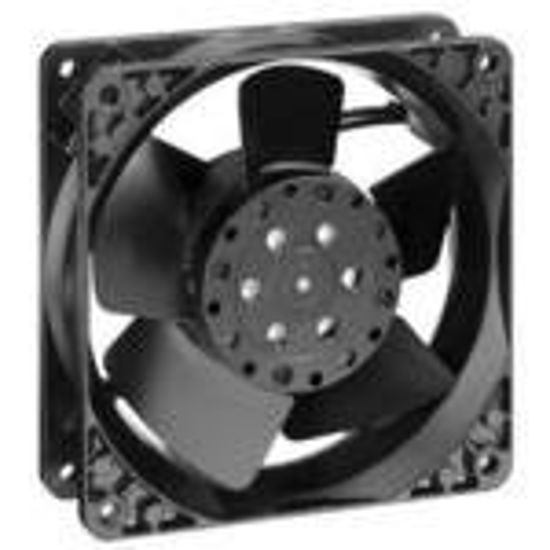

EBM Fan 4650 N

Nominal data
Type 4650 N
Nominal voltage [VAC] 230
Frequency [Hz] 50
Speed [min-1] 2650
Power input [W] 19.0
Min. ambient temperature [°C] -10
Max. ambient temperature [°C] 55
Air flow [m3/h] 160
Sound power level [B] 5.4
Sound pressure level [dB(A)] 46

Technical features
Dimensions 119 x 119 x 38 mm
General description AC fan with external rotor shaded-pole motor.
Connection line 2 flat plugs 3.0 x 0.5 mm. Housing with grounding lugs for screw M4 and UNC.
Direction of protection Right, looking at rotor
Direction of air flow Inlet over bars
Bearing Sintec sleeve bearing system
Lifetime L10 at 40 °C 37500 h
Lifetime L10 at maximum
temperature
27500 h
Mass 0.550 kg
Housing material Metal
Material of impeller Metal
Motor protection Protected from overload using impedance protection
Option Variants optionally available with reinforced mounting flanges and customizable single-strand wiring.
Approval VDE, CSA, UL, CE
