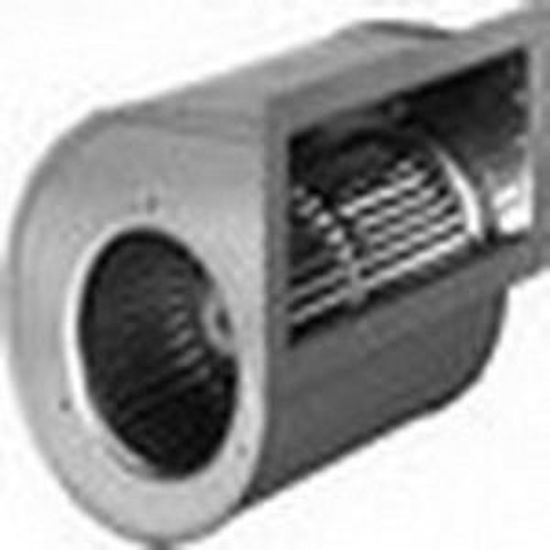

EBM Fan D2E133-AM47-01

AC centrifugal fan forward curved, dual inlet with housing (without flange
₹ 7,000.00


Nominal data
Type D2E133-AM47-01
Motor M2E068-DF
Phase 1~
Nominal voltage [V] 230
Frequency [Hz] 50
Type of data definition rfa l
Valid for approval / standard CE
Speed [min-1] 1500
Power input [W] 190
Current draw [A] 0.84
Motor capacitor [μF] 3
Capacitor voltage [VDB] 450
Capacitor standard UL
Min. back pressure [Pa] 0
Max. ambient temperature [°C] 35

Leackage current < 0.75 mA
Size 133 mm
Operation mode S1
Direction of rotation Clockwise, seen on rotor
Mounting position Any
Humidity class F0
Insulation class "B"
Cable exit Axial
Condensate discharge holes None
Bearing motor Ball bearing
Mass 3.48 kg
Housing material Sheet steel, hot-galvanised
Material of impeller Sheet steel, hot-galvanised
Motor suspension Motor mounted via brackets on one side
Motor protection Thermal overload protector (TOP) wired internally
Product conforming to
standard
CE; EN 60335-1
Surface of rotor Partially cast in aluminium
Type of protection IP 44; Depending on installation and position
Protection class I
Max. permissible ambient
motor temp. (transp./ storage)
+ 80 °C
Min. permissible ambient
motor temp. (transp./storage)
- 40 °C
Approval CCC
