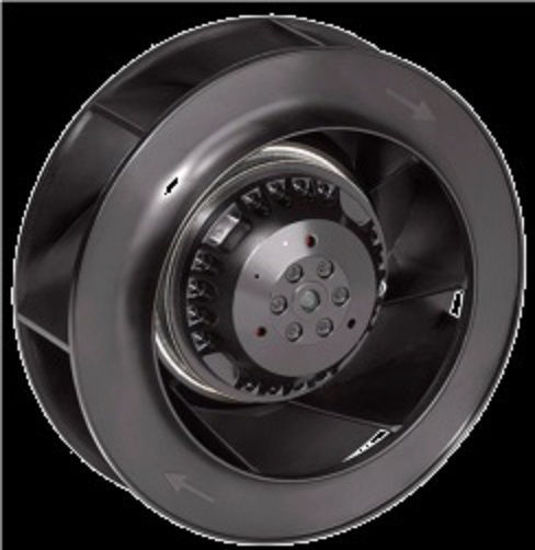

EBM Fan R2E190-AO26-05

Type R2E190-AO26-05
Motor M2E068-BF
Phase 1~
Nominal voltage [V] 230
Frequency [Hz] 50
Type of data definition rfa
Valid for approval / standard CE
Speed [min-1] 2500
Power input [W] 58
Current draw [A] 0.26
Motor capacitor [μF] 2
Capacitor voltage [VDB] 400
Capacitor standard P0 (CE)
Min. back pressure [Pa] 0
Max. ambient temperature [°C] 50
Air flow [m3/h] 570
Back pressure [Pa] 0
Sound pressure level [dB(A)] 62

Leackage current < 0,75 mA
Size 190 mm
Operation mode S1
Mounting position Shaft horizontal or rotor on bottom; rotor on top on request
Direction of rotation Clockwise, seen on rotor
Insulation class "B"
Cable exit Variable
Condensate discharge holes Rotor-side
Bearing-motor Ball bearing
Mass 1.2 kg
Material of impeller PA plastic 6, fiberglass-reinforced
Motor protection Thermal overload protector (TOP) wired internally
Product conforming to
standard
CE; EN 60335-1
Surface of rotor Coated in black
Number of blades 7
Type of protection IP 44
Protection class I
Approval CCC; GOST
