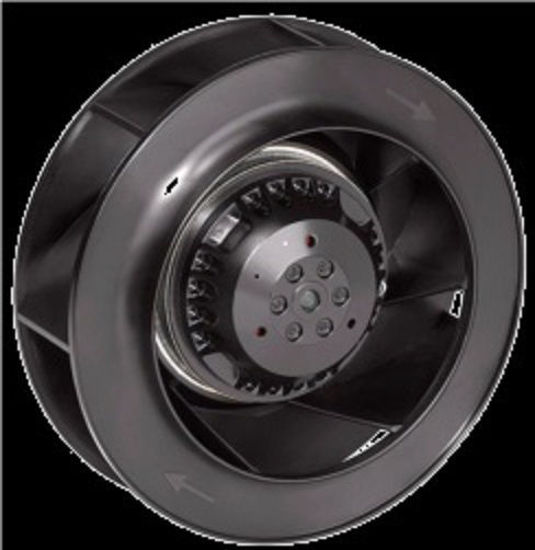

EBM Fan R2E225-BD92-09

AC centrifugal fan backward curved
₹ 6,000.00


Phase 1~
Nominal voltage [V] 230
Frequency [Hz] 50
Type of data definition rfa
Valid for approval / standard CE
Speed [min-1] 2650
Power input [W] 135
Current draw [A] 0.6
Motor capacitor [μF] 4
Capacitor voltage [VDB] 450
Min. back pressure [Pa] 0
Max. ambient temperature [°C] 55

Leackage current < 0.75 mA
Size 225 mm
Operation mode S1
Direction of rotation Clockwise, seen on rotor
Mounting position Shaft horizontal or rotor on bottom; rotor on top on request
Humidity class F1-2
Insulation class "F"
Cable exit Variable
Condensate discharge holes Rotor-side
Bearing motor Ball bearing
Mass 2.28 kg
Material of impeller PA plastic 6, fiberglass-reinforced
Motor protection Thermal overload protector (TOP) wired internally
Product conforming to
standard
CE; EN 60335-1
Surface of rotor Coated in black
Number of blades 7
Type of protection IP 44; Depending on installation and position as per EN 60034-5
Protection class I
Max. permissible ambient
motor temp. (transp./ storage)
+ 80 °C
Min. permissible ambient
motor temp. (transp./storage)
- 40 °C
Approval CCC
