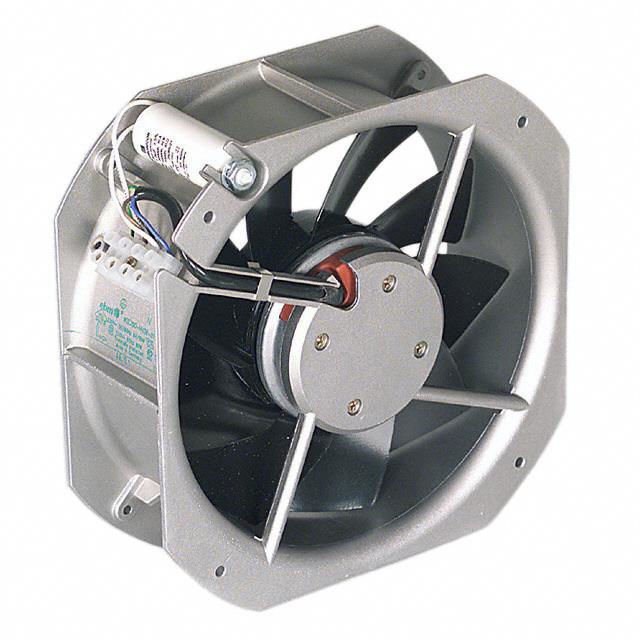

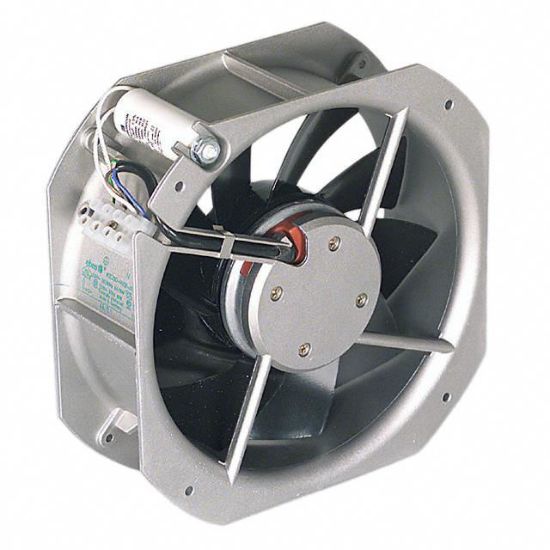

EBM Fan W2E200-HK38-01

Type W2E200-HK38-01
Motor M2E068-BF
Phase 1~
Nominal voltage VAC 230
Frequency Hz 50
Type of data definition fa
Valid for approval / standard CE
Speed (rpm) min-1 2550
Power input W 64
Current draw A 0.29
Motor capacitor μF 1.5
Capacitor voltage VDB 450
Capacitor standard S0 (CE)
Max. back pressure Pa 80
Min. ambient temperature °C -25
Max. ambient temperature °C 60
Starting current A 0.55

Mass 2.1 kg
Size 200 mm
Surface of rotor Coated in black
Material of blades Sheet steel, coated in black
Material of wall ring Die-cast aluminium
Number of blades 7
Direction of air flow "V"
Direction of rotation Counter-clockwise, seen on rotor
Type of protection IP 44; Depending on installation and position
Insulation class "B"
Humidity (F)/environmental
protection class (H)
H0 - dry environment
Max. permissible ambient motor
temp. (transp./ storage)
+ 80 °C
Min. permissible ambient motor
temp. (transp./storage)
- 40 °C
Mounting position Any
Condensate discharge holes None
Operation mode S1
Motor bearing Ball bearing
Touch current acc. IEC 60990
(measuring network Fig. 4, TN
system)
< 0.75 mA
Electrical leads Via terminal strips, integrated capacitor connected via terminal strips
Motor protection Thermal overload protector (TOP) wired internally
Cable exit Variable
Protection class I (if protective earth is connected by customer)
Motor capacitor according to EN
60252-1 in safety protection class
S0
Product conforming to standard EN 60335-1; CE
Approval UL 1004-3; VDE; EAC; CSA C22.2 No.113; CCC
