LINE INTERACTIVE UPS ZEB-U1201

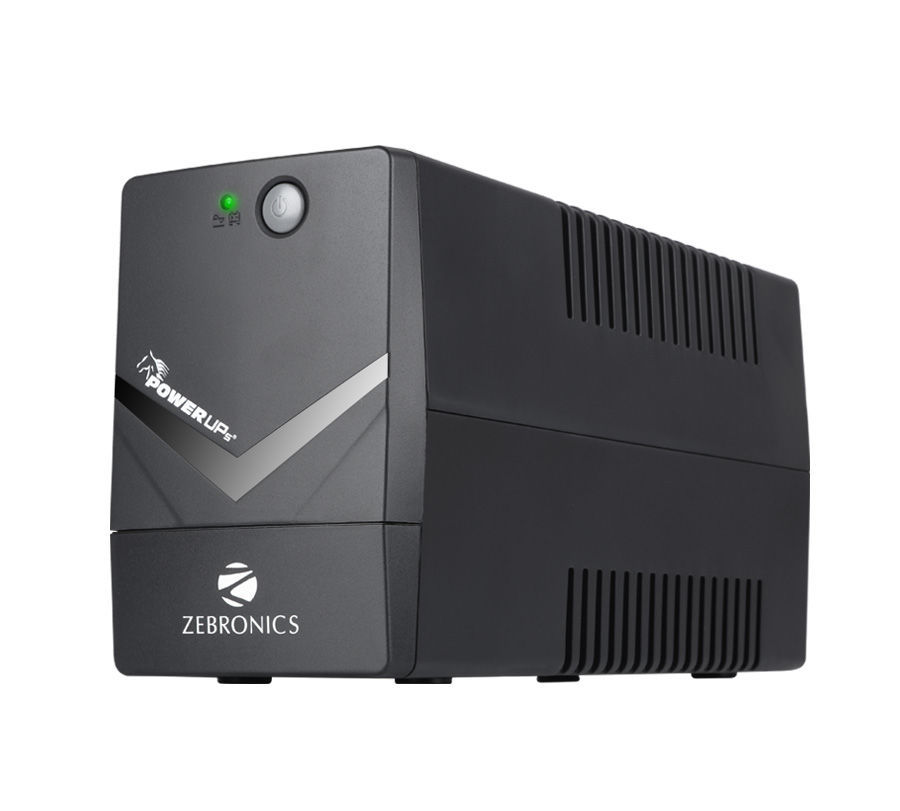

LINE INTERACTIVE UPS ZEB-U1201
Introducing 1000VA/600W line-interactive UPS ZEB-U1201 that is microcontroller-based, generator compatible, boosts and buck AVR and comes with automatic voltage regulation. The USP has overload protection and comes with a cold & auto restart.
Be the first to review this product
₹ 5,199.00
Qty:
+7 840
+93
+355
+213
+1 684
+376
+244
+1 264
+1 268
+54
+374
+297
+247
+61
+672
+43
+994
+1 242
+973
+880
+1 246
+375
+32
+501
+229
+1 441
+975
+591
+387
+267
+55
+246
+1 284
+673
+359
+226
+257
+855
+237
+1
+238
+345
+236
+235
+56
+86
+61
+57
+269
+242
+243
+682
+506
+385
+53
+599
+537
+420
+45
+246
+253
+1 767
+1 809
+670
+56
+593
+20
+503
+240
+291
+372
+251
+500
+298
+679
+358
+33
+596
+594
+689
+241
+220
+995
+49
+233
+350
+30
+299
+1 473
+590
+1 671
+502
+224
+245
+595
+509
+504
+852
+36
+354
+91
+62
+98
+964
+353
+972
+39
+225
+1 876
+81
+962
+7 7
+254
+686
+965
+996
+856
+371
+961
+266
+231
+218
+423
+370
+352
+853
+389
+261
+265
+247
+60
+960
+223
+356
+692
+596
+222
+230
+262
+52
+691
+1 808
+373
+377
+976
+382
+1664
+212
+95
+264
+674
+977
+31
+599
+1 868
+687
+64
+505
+227
+234
+683
+672
+850
+1 670
+47
+968
+92
+680
+970
+507
+675
+595
+51
+63
+48
+351
+1 787
+974
+262
+40
+7
+250
+685
+378
+966
+221
+381
+248
+232
+65
+421
+386
+677
+252
+27
+500
+82
+34
+94
+249
+597
+268
+46
+41
+963
+886
+992
+255
+66
+670
+228
+690
+676
+1 868
+216
+90
+993
+1 649
+688
+1 340
+256
+380
+971
+44
+598
+998
+678
+58
+84
+1 808
+681
+967
+260
+255
+263
FEATURES
Line interactive UPS
Auto restart while AC is recovering
Double boost
Automatic voltage regulation (AVR)
Wide input range
Microcontroller based
Generator compatible
SPECIFICATIONS
Capacity
(VA/W)
1000VA / 600W
Input
Nominal voltage
220-240 VAC
Voltage range
140-300 VAC
Frequency
50 Hz
Plug type
3 Pin plug
Output
Voltage range (AC mode)
195 - 255 VAC ± 5 %
Voltage range (Batt. mode)
230 VAC ± 10 %
Frequency range (Batt. mode)
50 / 60Hz ±1%
Transfer time
4 - 8ms typ.
Wave form
Simulated sine wave
No. of output sockets
3
Battery
Battery type
12V 9Ah x 1 nos
Charging current
1A
Recharge time
6-8 hours typ.
Indicators
No. of LEDs
1 LED
AC mode
Green LED glows
Battery mode
Green LED blinks in an interval of 10 seconds
Alarm
Battery mode
Beeping every 10 seconds
Low battery
Beeping every seconds
Overload
Beeping every 0.5 seconds
Fault
Continuous beeping
Physical Details
Product dimension
279 x 101 x 142 mm (W x D x H)
Net. weight
5.5kg
Package dimension
340 x 150 x 230mm (W x D x H)
Environmental Factors
Operational temperature
0-40⁰C
Noise Level
< 40dB
