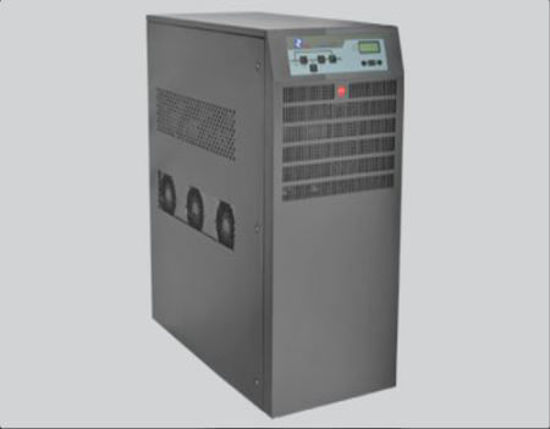

GAMMA SERIES 10KVA - 400KVA for IT, Medical and Industrial Applications
GAMMA SERIES 10KVA - 400KVA for IT, Medical and Industrial Applications
Gamma is a proven workhorse design to maximize the availability of your critical equipment continuously ensuring that Business Process is protected against all power problems. The True Double Conversion Isolation transformer based design is ideally suited to cater to all types of Industrial and IT applications
Be the first to review this product
₹ 96,000.00
Qty:
+7 840
+93
+355
+213
+1 684
+376
+244
+1 264
+1 268
+54
+374
+297
+247
+61
+672
+43
+994
+1 242
+973
+880
+1 246
+375
+32
+501
+229
+1 441
+975
+591
+387
+267
+55
+246
+1 284
+673
+359
+226
+257
+855
+237
+1
+238
+345
+236
+235
+56
+86
+61
+57
+269
+242
+243
+682
+506
+385
+53
+599
+537
+420
+45
+246
+253
+1 767
+1 809
+670
+56
+593
+20
+503
+240
+291
+372
+251
+500
+298
+679
+358
+33
+596
+594
+689
+241
+220
+995
+49
+233
+350
+30
+299
+1 473
+590
+1 671
+502
+224
+245
+595
+509
+504
+852
+36
+354
+91
+62
+98
+964
+353
+972
+39
+225
+1 876
+81
+962
+7 7
+254
+686
+965
+996
+856
+371
+961
+266
+231
+218
+423
+370
+352
+853
+389
+261
+265
+247
+60
+960
+223
+356
+692
+596
+222
+230
+262
+52
+691
+1 808
+373
+377
+976
+382
+1664
+212
+95
+264
+674
+977
+31
+599
+1 868
+687
+64
+505
+227
+234
+683
+672
+850
+1 670
+47
+968
+92
+680
+970
+507
+675
+595
+51
+63
+48
+351
+1 787
+974
+262
+40
+7
+250
+685
+378
+966
+221
+381
+248
+232
+65
+421
+386
+677
+252
+27
+500
+82
+34
+94
+249
+597
+268
+46
+41
+963
+886
+992
+255
+66
+670
+228
+690
+676
+1 868
+216
+90
+993
+1 649
+688
+1 340
+256
+380
+971
+44
+598
+998
+678
+58
+84
+1 808
+681
+967
+260
+255
+263
TECHNICAL FEATURES
High Frequency PWM Using IGBTs
Inbuilt Isolation Transformer
Auto Re-Transfer Static Switch
Energy Saving Mode
Parallel Redundancy
Protection against DC Shoot through Fault
TECHNICAL SPECIFICATIONS
INPUT
Ratings (KVA / KW)
10-400 kWA
Nominal Voltage
3ø, 380 / 400 / 415V (Selectable)
Voltage Range
350 to 460
Frequency
50 or 60 Hz (Selectable)
Frequency variation
40 to 60Hz
OUTPUT
Nominal Voltage
3ø, 380 / 400 / 415V (Selectable)
Frequency
50 or 60 Hz (Selectable)
Frequency Synchronization Range
±1%, ±2%, ±5%, ±10% (Selectable)
Power Factor
0.9
Voltage Variation
Balanced load
±1%
Unbalanced load
±5%
Phase Displacement
Balanced Load
120° ±1°
Unbalanced Load
120° ±3°
Voltage Distortion
< 3% at Linear Load
Overload
125% for 10 minutes
Crest factor
3:1
Efficiency
Inverter
94%
Overall
92%
DC VOLTAGES
Battery Voltage
384 Volts
Voltage Regulation
± 1%
Voltage Ripple
< ± 1%
STATIC BYPASS
Switching Time
Inverter Failure
2 ms
Other Modes
0
ENVIRONMENTAL CONDITION
Operating Temperature
0-40°C
Storage Temperature
-20°C to +70°C (Not for Batteries)
Relative Humidity
95% Non-Condensing
Maximum Altitude above sea level
1000 meters without derating
GENERAL
Ingress Protection
IP-20
Cooling
Forced Air
PHYSICAL
kVA/KW Rarings
10/9
15/13.5
20/18
30/27
40/36
50/45
60/64
80/72
100/90
120/108
160/144
200/180
300/270
400/360
Dimensions in mm (W×D×H)
440×900×1015
500×1025×1075
700×725×1800
1000×905×1965
1600×950×2100
Weight (kg)
180
205
250
300
325
355
385
610
700
900
1100
1200
1800
1850
Noise Level in db
<45
<45
<50
<50
<50
<50
<50
<55
<55
<65
<65
<65
<70
<70
