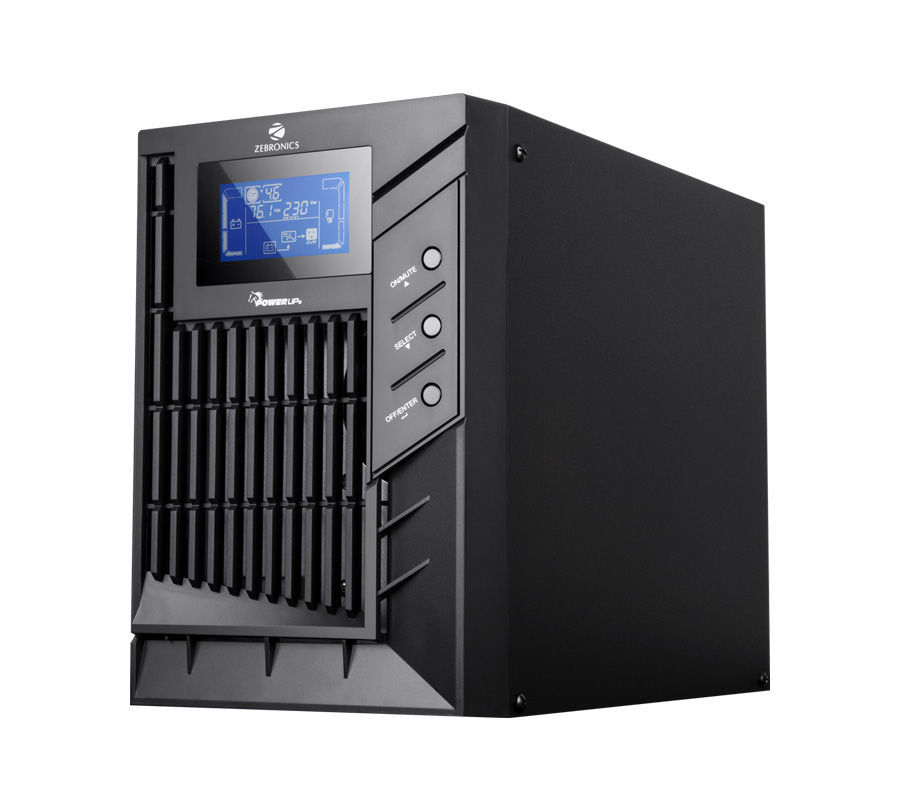

ONLINE UPS ZEB-OU1KE6

ZEBRONICS Online UPS is specifically designed for operations in poor power areas. They provide high power density with long backup time in compact size. It's ideal for ATMs, banking and other businesses with critical applications. Users could also adjust charging current from 1A to 6A according to different applications. Comprehensive display allows easy monitoring and access of UPS status,

₹ 17,999.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

FEATURES

Online Ups-1KVA

Microprocessor Based Control

LCD Display - Load Level, Battery Level, Ac Mode, Battery Mode, Bypass Mode & Fault Indicators

Generator Compatible

Wide Input Voltage Range

External Battery*

Eco Mode For Energy Saving

User Selectable Output Voltage

Zero Transfer Time

Power Management Software

SPECIFICATIONS

CAPACITY	1000 VA / 800 W
INPUT
Voltage Range
Low Line Transfer	160VAC/140VAC/120VAC/110VAC±5% (Ambient Temp.<35°C) (based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
Low Line comeback	175VAC/155VAC/135VAC/125VAC ± 5 % (Ambient Temp.<35°C) (based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
High Line Transfer	280 VAC ± 5 %
High Line Comeback	270 VAC ± 5 %
Frequency Range	40Hz ~ 70 Hz
Phase	Single phase with ground
Power Factor	>=0.99 @ nominal voltage (input voltage)
OUTPUT
Output voltage	200/208/220/230/240VAC
AC Voltage Regulation	±1% (Batt. Mode)
Frequency Range	47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range)
Frequency Range (Batt. Mode)	50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
Overload	Ambient Temp <35°C) 105%~110%: UPS shuts down after 10 minutes at battery mode or transfer to bypass when the utility is normal. 110%~130%: UPS shuts down after 1minute at battery mode or transfer to bypass when the utility is normal. >130%:UPS shuts down after 3seconds at battery mode or transfer to bypass when the utility is normal.
Current Crest Ratio	3:1
Harmonic Distortion	<= 3 % THD (linear load); = 6 % THD (non-linear load)
Transfer Time	AC Mode to Batt. Mode : Zero Inverter to Bypass : 4 ms (Typical)
Waveform (Batt. Mode)	Pure Sinewave
EFFICIENCY
AC Mode	88%
Battery Mode	83%
BATTERY
Numbers	3*
Recharge Time	Depending On The Capacity Of External Batteries
Charging Current	1.0A/2.0A/4.0A/6.0A
Charging Voltage	41.0 VDC ±1%
PHYSICAL
Dimension	282 x 145 x 220mm (D x W x H )
Net. Weight	4.1 kg
ENVIRONMENT
Operation Humidity	20-90 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 50dBA @ 1 Meter
MANAGEMENT
Smart RS-232 or USB	Supports Windows® XP/Vista/7/8/10, Linux, Unix and MAC
