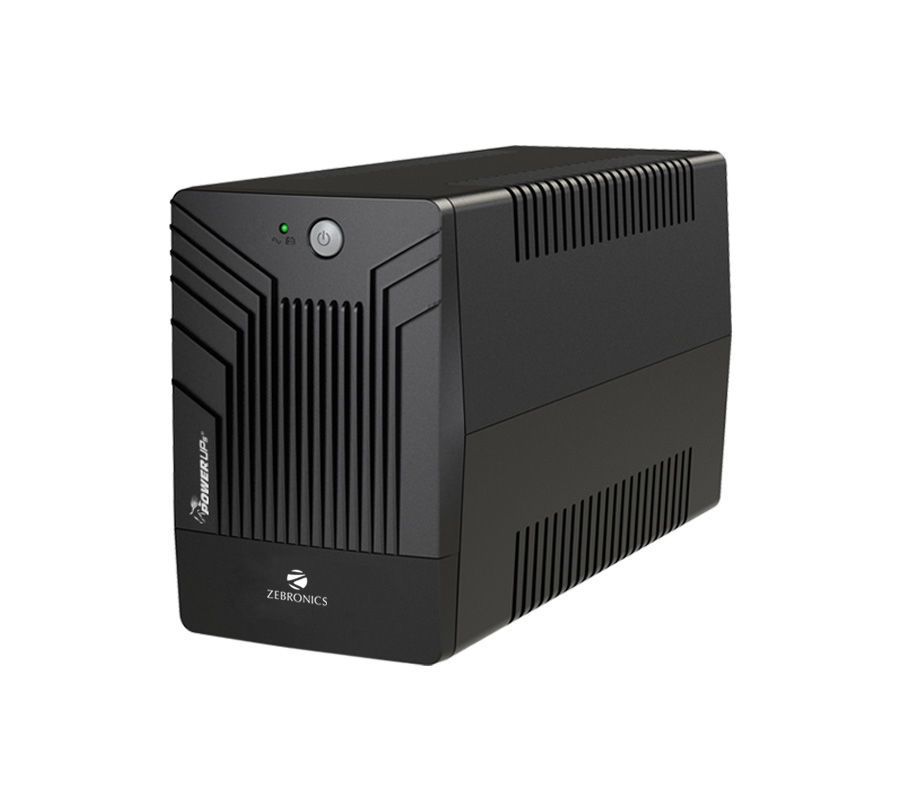

SECURITY UPS (MICRO LOAD) ZEB-MLS750

India’s first micro load UPS. Specially made for the security and surveillance CCTV /Broadcast studio / Medical equipments

₹ 2,499.00

Qty:

India’s first micro load UPS. Specially made for the security and surveillance CCTV /Broadcast studio / Medical equipments
Voltage range of AC 140 - 290V
ZEB Micro Load Sense system, processor based output load sensing feature, to sense micro power consumption devices
Backup of more than 3 hours for micro power consumption devices
Excellent microprocessor control guarantees high reliability
Advanced 3 Tier battery management system, prolongs battery life by more than 30%.
Made for extreme Indian Conditions.
Rogue Equipment Connection proof – can adapt to Generators /Inverters having poor power factor as well as obsolete square wave output.
LED & Audible alarms for instant alert signals.
Auto restart while AC is recovering
Simulated sine wave
Off-mode charging
Cold start function
*(Under testing conditions with 1 DVR without HDD and 2 cameras without IR enabled)

Capacity	600VA / 360W
Input
Voltage	220VAC
Voltage range	140-300 VAC
Frequency range	50Hz
Output
AC Voltage regulation (Batt. mode)	±10%
Frequency range (Batt. mode)	50Hz ±1Hz
Transfer time	Typical 4-8ms
Waveform (Batt. mode)	Simulated Sine Wave
Battery
Battery type & number	12 V/7Ah x 1
Typical recharge time	4-6 hours up to 90% capacity
Indicators
AC Mode	Green lighting
Battery mode	Green flashing
Fault	N/A
Alarm
Battery mode	No beep till reach low voltage level
Low battery	Beep every second
Overload	Beep every 0.5 second
Fault	Continuously beeping
Protection
Full protection	Overload, discharge, and overcharge protection
Physical
Dimension, D x W x H (mm)	279 x 101 x 142
Net. weight (kgs)	4.2
Environment
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise level	Less than 40dB
*Product specifications are subject to change without further notice
#Load conditions apply. CCTV surveillance system is built up with a DVR , Multi point Power supply, and the Camera array along with the distribution cable , all the above contribute to the main power load on the UPS , hence the Backup time varies according to system setup , make and efficiency of each component in the system. Also the advanced Battery management system protects the full system which has an effect on the back up time. Our results are based on lab test on system having DVR & 2 IR cameras
